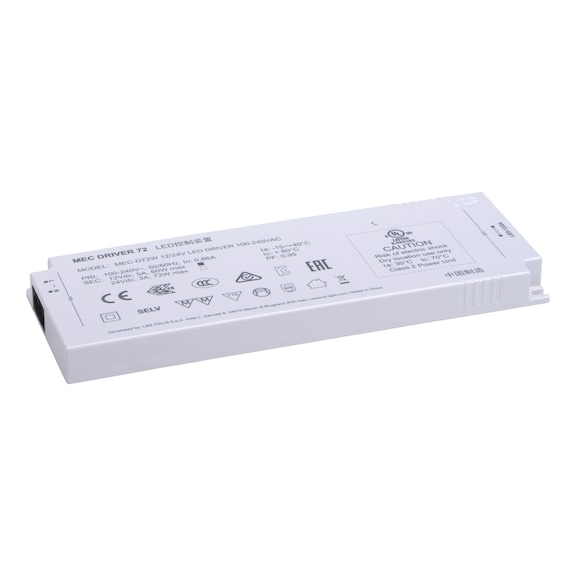

Variable LED transformer 12 V/24 V - TRAFO-LED-12/24V-60/72W-LED-T-12/24-1 Variable LED transformer 12 V/24 V - TRAFO-LED-12/24V-60/72W-LED-T-12/24-1 Variable LED transformer 12 V/24 V - TRAFO-LED-12/24V-60/72W-LED-T-12/24-1
Variable LED transformer 12 V/24 V - TRAFO-LED-12/24V-60/72W-LED-T-12/24-1 - 1
Variable LED transformer 12 V/24 V - TRAFO-LED-12/24V-60/72W-LED-T-12/24-1 - 2
Variable LED transformer 12 V/24 V - TRAFO-LED-12/24V-60/72W-LED-T-12/24-1 - 3

Variable LED transformer 12 V/24 V

LED transformer LED-T-12/24-1
TRAFO-LED-12/24V-60/72W-LED-T-12/24-1

Art.-no. 0976502793

EAN 4065233093768

All versions

Individual price display after login
Variable LED transformer 12 V/24 V

Art.-no. 0976502793

Individual price display after login
Quantity
PU
x 1 pcs

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 15,000 products

With a plug-in 6-way or 8-way lamp distributor with or without radio control
  • Wireless radio control system incl. transformer

  • In conjunction with the control box, up to four sensors can be taught in on one transformer

  • One sensor can be taught in on a total of three different control boxes

  • Slim design with only 16.5 mm height

  • Can also be used as standard transformer with 8-way lamp distributor without radio
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Input voltage

230 V/AC

Min. frequency

50 Hz

Max. frequency

60 Hz

Min./max. output voltage

12-24 V

Min./max. power

60-72 W

Connection type (primary)

Euro plug

Number of connections

1 PCS

Material of housing

Plastic

Colour of housing

White

Length

210 mm

Width

75 mm

Height

16 mm

IP protection class

IP 20

Required accessory:

Product
Description
Quantity
PU
Price
/PU

CONLNE-(F.TRAFO-LED-T-12-5)

x 1 pcs

LAMPDISTR-(TRAFO-LED-T-12/24-1)-8WAY-12V

For plugging into LED transformer LED-T-12/24-1
x 1 pcs

SWTCH-EL-CONTR-BOX-12V-LED-T-12/24-1

For plugging into LED transformer LED-T-12/24-1
x 1 pcs

SWTCH-EL-CONTR-BOX-24V-LED-T-12/24-1

For plugging into LED transformer LED-T-12/24-1
x 1 pcs
