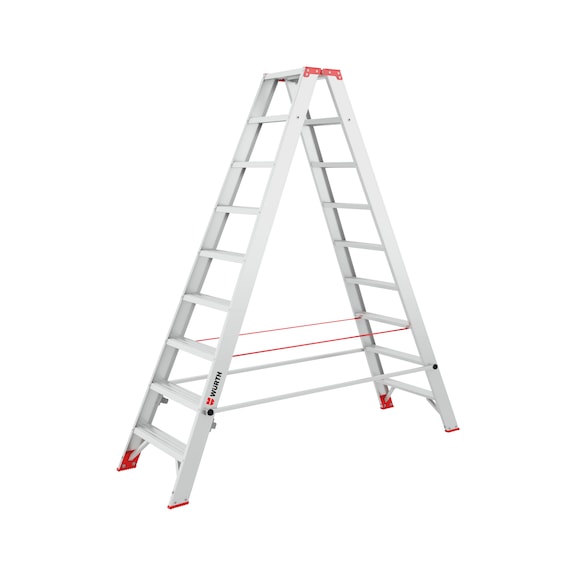

Aluminium standing ladder with steps Riveted
Aluminium standing ladder with steps riveted
STANDLDR-ALU-RIVETET-2X9STEP
Art.-no. 0962932509
EAN 4065746734660
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +44 03300 555 444.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,000 products
Steps with tested slip resistance
- 86 mm deep steps with grooved surface and slip resistance class R12 according to DIN 51130 ensure a high level of climbing safety and a comfortable, safe footing
- Special rivets for connecting struts/rungs and reinforcements at the end of the struts ensure excellent robustness and resistance to torsion
- From dimension 2x9 upwards with metal cross brace for even greater stability
- Very good deflection stability, as steps and strut are manufactured from extruded aluminium
- The plastic feet can be easily replaced with plug/screw connections if required
Product information
Datasheets(X)
Material | Aluminium |
Number of steps | 2 x 9 |
Length | 2.13 m |
Width (bottom)/width (top) | 569/350 mm |
Beam dimensions | 84 mm x 22.3 mm |
Step distance | 232 mm |
Step depth | 86 mm |
Stand area according to TRBS 2121-2 | Yes |
Stride length | 1.84 m |
Height, vertical | 1.93 m |
Load capacity | 150 kg |
Stand height | 1.50 m |
Working height | 3.00 m |
Reaching height | 3.50 m |
Weight | 15.8 kg |
Standards | EN 131 |
