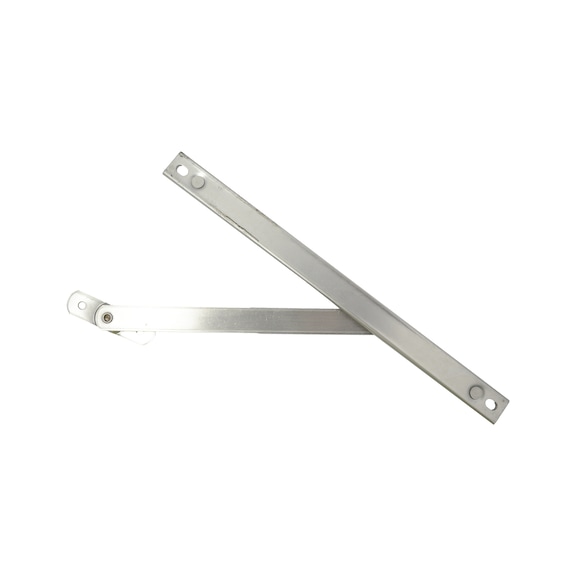

Friction Stay Restrictor Arm
Restrictor arm
RSTRCTARM-SST-(PL)-L350MM
Art.-no.
068910051
EAN 5034293703206
Prices for customers after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +44 03300 555 444.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,000 products
Unobtrusive mechanism designed to be less tempting to children
The Restrictor Friction Hinge is a simple and effective way to restrict the initial opening of a window to a maximum of 100mm, in accordance with BS8213-1:2004. It is able to withstand the load bearing forces required in BS EN 14351 and BS6375-2. The unobtrusive mechanism, which is integral to the hinge and designed to be less tempting to children, requires a level of dexterity to operate and two hands are required to coordinate opening, giving added protection. An automatic reset facility ensures safe operation at all times.
The above application instructions are recommendations given on the basis of our own tests and experience. We recommend that you carry out your own tests before use. Due to the great variety of different applications and storage and processing conditions, we cannot guarantee a particular application result. We will not accept legal liability for any advice or technical information provided by our free customer hotline unless this advisory service and/or technical information is part of the contractually agreed performance owed by us, or the customer service employee acted wilfully or intentionally. We guarantee the consistent quality of our products and reserve the right to make technical changes and improvements.
Product information
Datasheets(X)
Application areaWindows
Instructions
- Place the Friction Hinge nose bar onto the sash eurogroove and fix in position. The position will depend upon the window profile used.
- Fit the sash to the frame. Ensure that the nose caps are pushed up to the frame corner and fix in position. Adjustment is provided by the adjustment slots if required.
Width | 12 mm |
Material | Stainless steel |
Surface | Plain |
Length | 350 mm |
