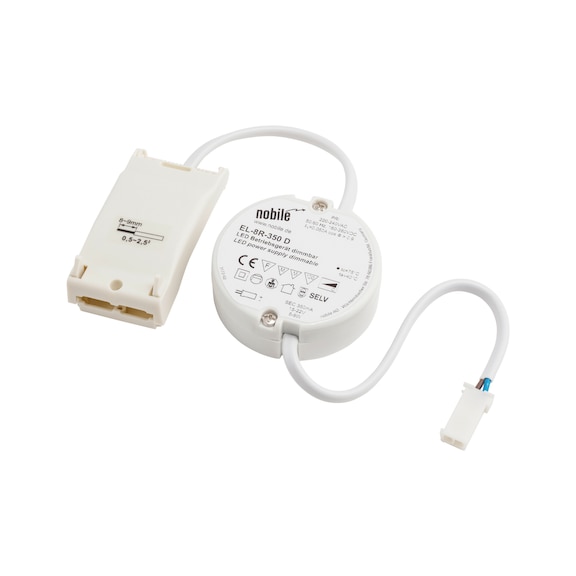

LED transformer 350mA For integrating
LED transformer for EBL-350-5
TRAFO-LED-350MA-8W-DIMMABLE
Art.-no. 0976506008
EAN 4062856581283
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +44 03300 555 444.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,000 products
For EBL-350-5
- For mounting in suspended ceiling
- Suitable for recessed luminaires EBL-350-5
Product information
Datasheets(X)
 | |
Type description | Transformer - EBL-350-5 |
Input voltage | 230 V |
Min. input voltage | 220 V |
Max. input voltage | 240 V |
Min. frequency | 50 Hz |
Max. frequency | 60 Hz |
Max. current | 350 mA |
Min. output power | 5 W |
Cable length (secondary) | 200 mm |
Number of connections | 1 PCS |
Dimmable | Trailing edge dimmer |
Material of housing | Plastic |
Colour of housing | White |

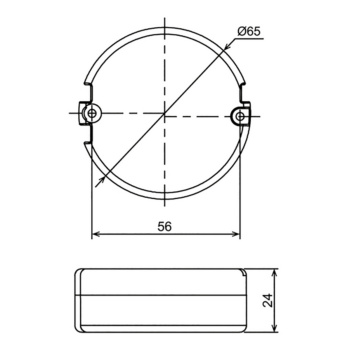

Height | 24 mm |
Diameter | 65 mm |
IP protection class | IP 20 |
Protection class | Protection class II/protective insulation |
