MG-ZD 6 segmented-bow designer furniture handle Made from die-cast zinc
Furniture handle design arch handle MG-ZD 6
HNDL-SEGMBOW-MG-ZD6-(CR)-POL-320MM
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +44 03300 555 444.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,000 products
Specified dimensions not binding. Subject to technical changes.
Product information
Datasheets(X)
 | |
Material | Die-cast zinc |
Surface | Chrome plated |
Gloss level | Polished |

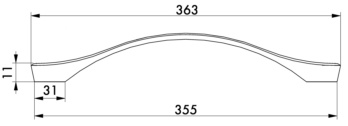

Length (L) | 363 mm |
Width (B) | 20 mm |
Height (H) | 31 mm |
Thickness (D) | 3.6 mm |
Dimension between axes (A) | 320 mm |
Width of the handle bar | 11 mm |
Length of the handle base | 31 mm |
Width of the handle base | 10 mm |
Thread type | Metric thread |
Thread diameter | 4 mm |
Thread length (metric thread) | 6 mm |
