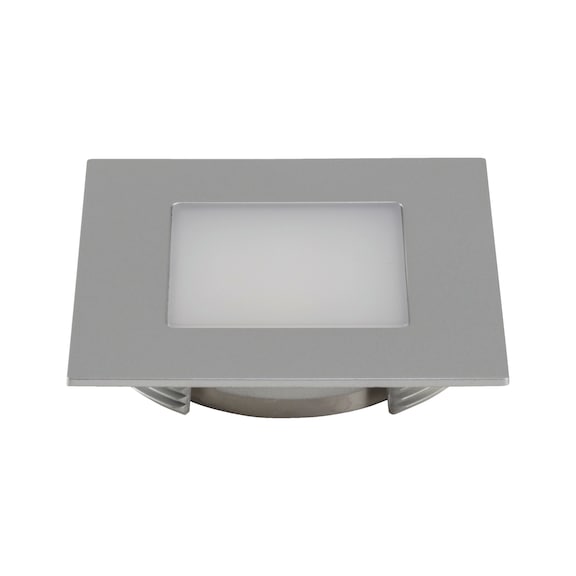

Recessed LED light EBL-24-14 For recessed installation
LED recessed light EBL-24-14
LGHT-LED-(EBL-24-14)-EW-ALUCOL
Art.-no. 0976504305
EAN 4056807713458
Register now and access more than 15,000 products
- Built-in light for installation diameter 68 mm in square design
- Available in chrome matt and stainless steel colours
- Available in light colour adjustable white (2700–5000 K)
Dimensions subject to change. Subject to technical changes!
Datasheets(X)
 | |
Lamp type | LED |
Nominal voltage | 24 V |
Material | Plastic |
Colour | Aluminium coloured |
Type of assembly | For embedding |
Power rating | 4 W |
Number of LEDs | 72 PCS |
Colour of light | Adjustable white |
Min./max. colour temperature | 2700-5000 K |
Luminous flux | 270 lm |
Min. colour rendering index (CRI) | 92 |
Height | 13 mm |
Outer diameter | 75 mm |
Installation diameter | 68 mm |
Installation depth | 12 mm |
Connection type | Plug-in system LD2 |
Cable length | 2500 mm |
IP protection class | IP 44 |
Protection class | Protection class III/safety extra-low voltage |
Life time of illuminant | 54000 h |
With switch | No |
Energy efficiency class | G |
Included in delivery | 1 x LED recessed light EBL-24-14 incl. 2500 mm connection line |
Select RAL-colour code
!! NOTE: On-screen visualisation of the colour differs from real colour shade!!
