VARIFIX® 4D rail connector for batch hot-dip galvanised power lock system 41 in an open profile
VARIFIX rail connector 4D open HDG
RLCON-4D-PRFL41-HDG-LONGHO-PWRKNOB-OPN
Art.-no. 5254004105
EAN 4099618619328
Individual price display after login
Show availability in Würth shop
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +44 03300 555 444.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,000 products
Stable and flexible connection of mounting rails in all directions
- For quickly and securely connecting mounting rails, especially in demanding installation conditions
- Adapts flexibly to any installation situation due to its 4D adjustability
- Due to the hot-dip galvanised coating, it is corrosion-resistant and offers long-term stability even in harsh environments
Product information
Datasheets(X)
Application area
The VARIFIX® 4D rail connector is ideally suited for connecting mounting rails in industrial installations, building technology and pipework installations. It offers a high degree of flexibility, especially in installations with complex mounting conditions.
 | |

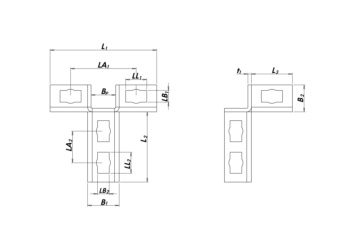

Suitable for mounting rail | 41 x 41 mm, 41 x 62 mm, 41 x 44 mm, 41 x 22 mm |
Length (L1) | 116 mm |
Length 2 (L2) | 182 mm |
Length 3 (L3) | 70 mm |
Width (B1) | 182 mm |
Profile width (BP) | 42 mm |
Thickness (t1) | 6 mm |
Elongated hole length (LL) | 36 mm |
Elongated hole width (LB) | 20 mm |
Hole distance (LA1) | 54 mm |
Hole distance 2 (LA2) | 112 mm |
Material | Non-alloyed structural steel, 1.0038 |
Surface | Hot dip galvanized |
Height | 166 mm |
