X91N Hinge
Hinge X91N Emuca

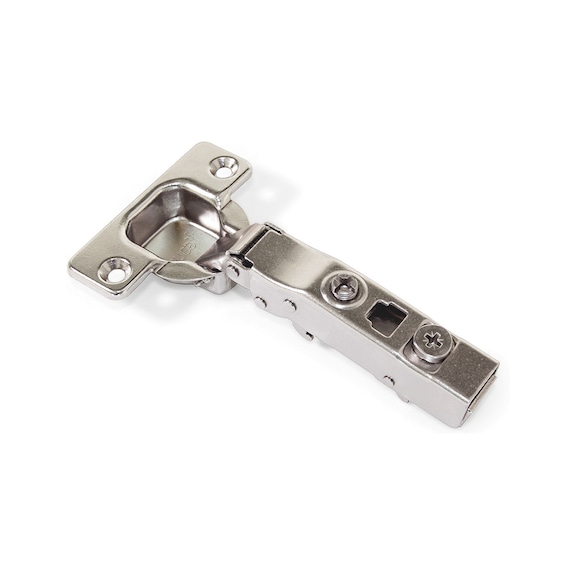

EMUCA X91N HINGE FULL 105 UNSPRUNG
Art.-no.
9501003359
EAN 8432393134901
Prices for customers after login
Show availability in Würth trade store
In order to check the stock in a Würth branch, please log in.
If you have any questions, please call our service hotline at +44 03300 555 444.
You are not yet a Würth customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 15,000 products
The X91 hinges have a softening piston in order to offer soft door closing.
- Hinge to plate quick fixing system
- For 14 ~ 24 mm door thickness.
- Adjustable in 3 dimensions.

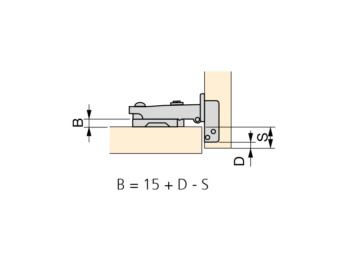

- Distance to cup bore edge d = 3 ~ 7 mm.
- Depth adjustment by cam.
- Spring in opening and closing
Product information
Datasheets(X)
 | |
Corresponds to Emuca article number | 1044007 |
Crank | mm |
Opening angle | 105 |
Door position | Full overlay |
Cushioning effect | No |
Spring | No |
